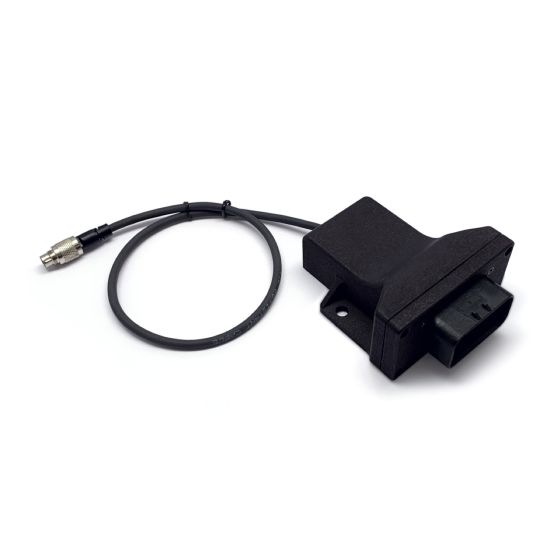

AIM Remote Input Output Module (RIO02)

Designed for use with the AIM Motorsport PDM's this remote input / output module (RIO 02) adds a further 19 inputs dedicated to push button management. Configurable for use with different button types such as momentary or latching. Momentary switched can also be configured for long or short push activation.Connects to AIM Motorsport PDM's to add up to 19 additional switch inputsConfigurable switch types (latching or momentary)Waterproof to IP65, ideal for Motorsport environmentsThe remote input / output module features 19 inputs, 8 of those inputs are programmable to either switch to ground or switch to live (battery). The rest of the inputs are switch to ground only. The module also features 2 low side outputs with 2A max current.AIM Motorsport Remote Input Output Module (RIO02) Technical SpecificationsDimensions: 99 x 80 x 40mmWeight: 120g
