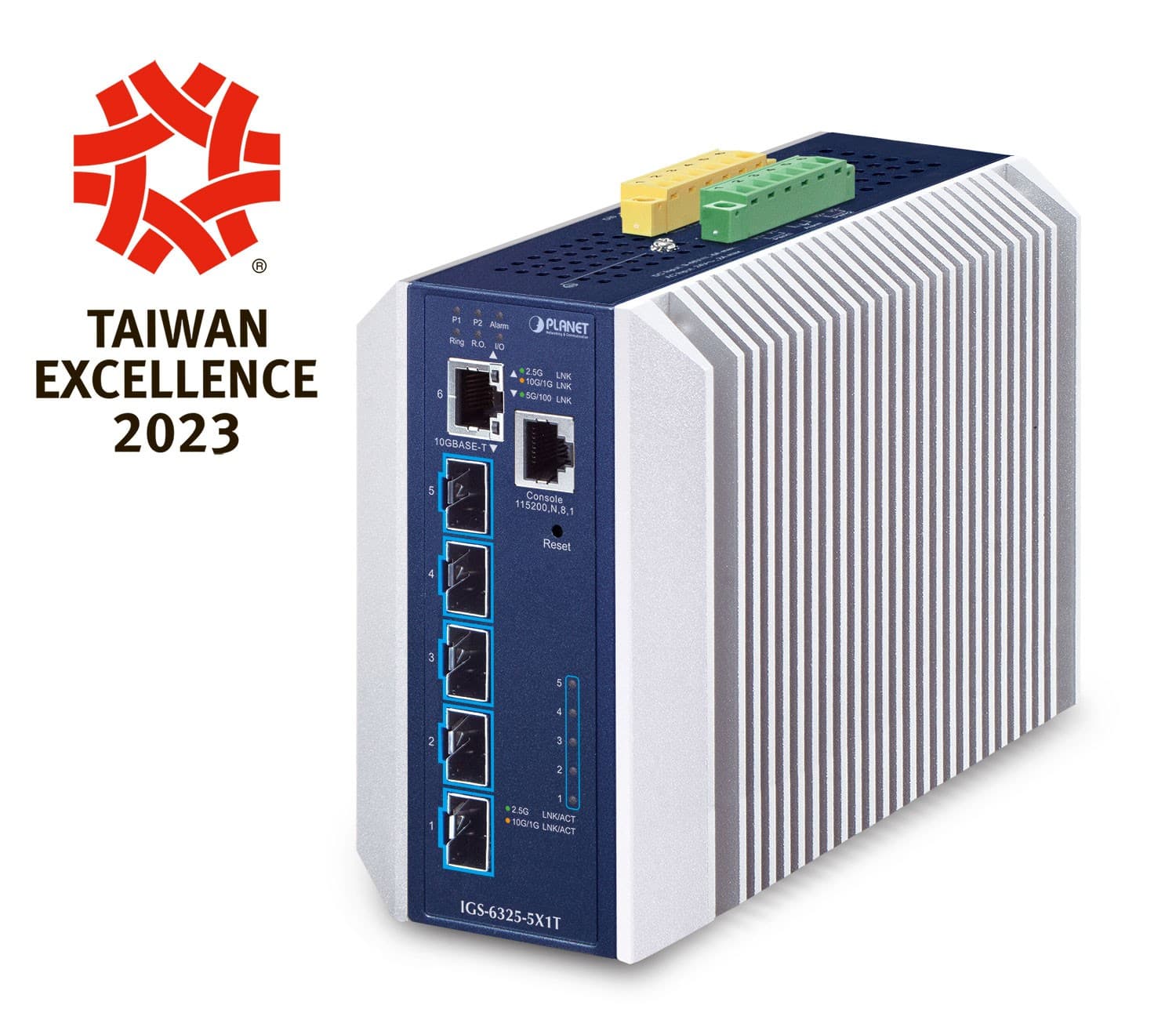

PLANET Industrial Layer 3 5-Port Managed L3 10G Ethernet (100/1000/100

10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking PLANET IGS-6325-5X1T is a brand-new all-port 10Gbps Industrial-grade Layer 3 Managed Ethernet Switch which features 5 10GBASE-SR/LR SFP+ ports. 1 10GBASE-T copper port and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial environments. With 10Gbps fiber or copper interfaces. the IGS-6325-5X1T can handle extremely large amounts of data in a secure topology linking to an industrial backbone. 5G NR base station or Wi-Fi6/6E wireless AP. The IGS-6325-5X1T is capable of providing non-blocking switch fabric and wire-speed throughput as high as 120Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. 10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth ApplicationsThe IGS-6325-5X1T has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation. and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling. meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy.The fiber-optic 10GBASE-X SFP+ interfaces support triple speeds. 10GBASE-SR/LR. 2500BASE-X and 1000BASE-SX/LX. meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-5X1T provides broad bandwidth and powerful processing capacity.Redundant Ring. Fast Recovery for Critical Network ApplicationsThe IGS-6325-5X1T supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network. the recovery time of data link can be as fast as 10ms. Layer 3 Routing SupportThe IGS-6325-5X1T enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually. the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches. and then uses the Shortest Path First algorithm to generate a route table based on that database.Robust Layer 2 FeaturesThe IGS-6325-5X1T can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation. 802.1Q tagged VLAN. Q-in-Q VLAN. private VLAN. Multiple Spanning Tree Protocol (MSTP). Layer 2 to Layer 4 QoS. bandwidth control. IGMP snooping and MLD snooping. Via the aggregation of supporting ports. the IGS-6325-5X1T allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.Cybersecurity Network Solution to Minimize Security RisksThe IGS-6325-5X1T comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data over a long-distance fiber optic cable to customer's critical equipment in a business network. the cybersecurity feature of the IGS-6325-5X1T protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.Modbus TCP Provides Flexible Network Connectivity for Factory AutomationWith the supported Modbus TCP/IP protocol. the IGS-6325-5X1T can easily integrate with SCADA systems. HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information. port information. communication status. and DI and DO status. thus easily achieving enhanced monitoring and maintenance of the entire factory.1588 Time Protocol for Industrial Computing NetworksThe IGS-6325-5X1T is ideal for telecom and carrier Ethernet applications. supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. SMTP/SNMP Trap Event AlertThe IGS-6325-5X1T provides event alert function to help to diagnose the abnormal device owing to whether or not there i
