PLANET IP30 DIN-rail Industrial L3 8P Managed Gigabit Ethernet (10/100

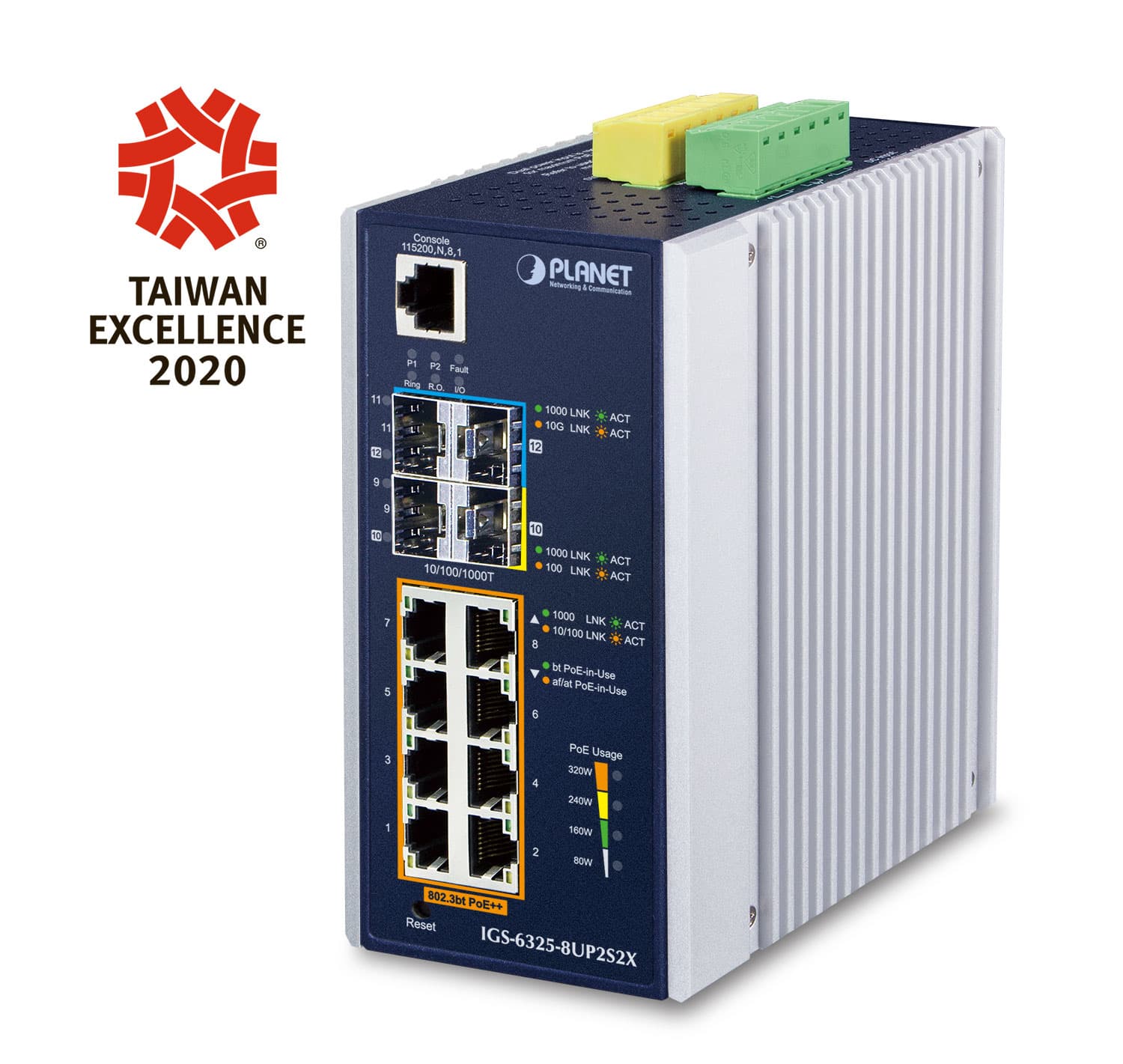

Outstanding 802.3bt PoE++ Solution for Hardened Environment Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology. PLANET IGS-6325-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts. two 10G SFP+ ports and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports. 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. Being able to operate under wide temperature range from -40 to 75 degrees C. the IGS-6325 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6325 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space. 802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution As the IGS-6325 PoE++ Series adopts the IEEE 802.bt PoE++ standard and PoH technology. it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs. such as: - PoE PTZ speed dome cameras - Network devices - Thin clients - AIO (all-in-one) touch PCs. point of sale (POS) and information kiosks - Remote digital signage displays - PoE lightings 802.3bt PoE++ and Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power. the IGS-6325 PoE++ Switch series provides five different PoE power output modes for selection. - 90W 802.3bt PoE++ Power Output Mode (Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8) - 95W UPOE/PoH Power Output Mode (Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8) - 30W End-span PoE Power Output Mode (Pins 1. 2. 3. 6) - 30W Mid-span PoE Power Output Mode (Pins 4. 5. 7. 8) - 60W Force Power Output Mode (Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8) Convenient and Smart ONVIF Devices with Detection Feature PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6325 PoE++ Switch series GUI. clients just need one click to search and show all of the ONVIF devices via network application. In addition. clients can upload floor plans to the switch. allowing to locate surveillance devices for easier inspection and planning. Moreover. clients can get real-time surveillance’s information and online/offline status. and also allows cameras PoE reboot control from GUI. Intelligent Alive Check for Powered Device The IGS-6325 PoE++ Series can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding. the IGS-6325 PoE++ Series will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power. thus reducing administrator’s management burden. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth. the IGS-6325 PoE++ Series can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. Scheduled Power Recycling The IGS-6325 PoE++ Series allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore. it will reduce the chance of IP camera or AP crash resulting from buffer overflow. Layer 3 Routing Support The IGS-6325 Series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually. and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches. and then uses the Shortest Path First algorithm to generate a route table based on that database. Redundant Ring. Fast Recovery for Critical Network Applications The IGS-6325 Series supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime i
