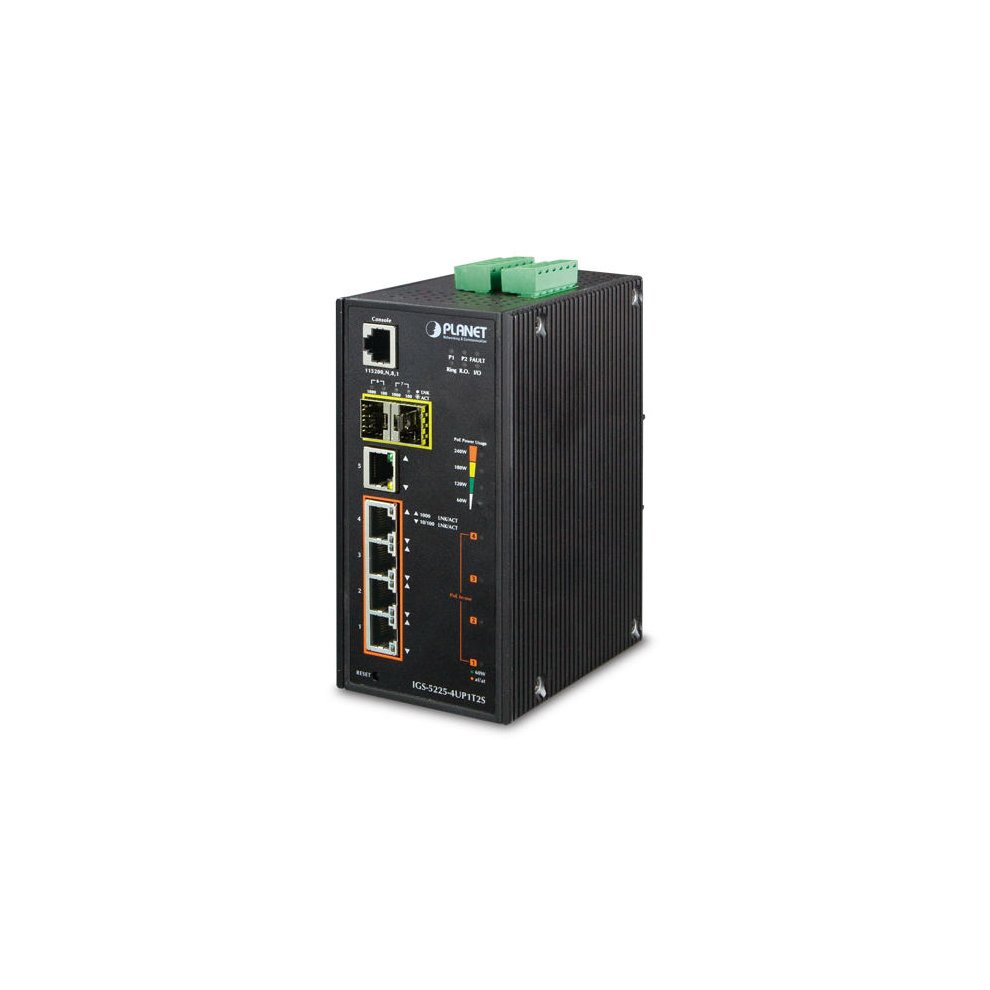

PLANET IGS-5225-4UP1T2S network switch Managed L2+ Gigabit Ethernet (1

Outstanding 802.3bt PoE++ Solution for Hardened Environment Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology. the latest version of PLANET IGS-5225-4UP1T2S L2+ Industrial Managed PoE++ Switch features four 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts. one extra 10/100/1000BASE-T copper port and two 100/1000BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports. 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. Being able to operate under wide temperature range from -40 to 75 degrees C. the IGS-5225-4UP1T2S can be placed in almost any difficult environment. The IGS-5225-4UP1T2S also allows either DIN rail or wall mounting for efficient use of cabinet space. 802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution As the IGS-5225-4UP1T2S adopts the IEEE 802.bt PoE++ standard and PoH technology. it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs. such as: - PoE PTZ speed dome cameras - Network devices - Thin clients - AIO (all-in-one) touch PCs. point of sale (POS) and information kiosks - Remote digital signage displays - PoE lightings Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power. the IGS-5225-4UP1T2S provides five different PoE power output modes for selection. - 90W 802.3bt PoE++ Power Output Mode(Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8) - 95W UPOE/PoH Power Output Mode(Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8) - 30W End-span PoE Power Output Mode(Pins 1. 2. 3. 6) - 30W Mid-span PoE Power Output Mode(Pins 4. 5. 7. 8) - 60W Force Power Output Mode Intelligent Alive Check for Powered Device The IGS-5225-4UP1T2S PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding. the IGS-5225-4UP1T2S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power. thus reducing administrator’s management burden. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection on the Earth. the IGS-5225-4UP1T2S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. Scheduled Power Recycling The IGS-5225-4UP1T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore. it will reduce the chance of IP camera or AP crash resulting from buffer overflow. Redundant Ring. Fast Recovery for Critical Network Applications The IGS-5225-4UP1T2S supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network. the recovery time of data link can be as fast as 10ms. Network with Cybersecurity Helps Minimize Security Risks The IGS-5225-4UP1T2S comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. Served as a key point to transmit data and offering over 95-watt PoE output to customer's critical equipment in a business network. the cybersecurity feature of the IGS-5225-4UP1T2S protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort. Convenient and Smart ONVIF Devices with Detection Feature PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-4UP1T2S GUI. clients just need one click to search and show all of the ONVIF devices via network application. In addition. clients can upload floor images to the switch. allowing to locate surveillance devices for easier inspection and planning. Moreover. clients can get real-time surveillance’s information and online/offline status. and also allows PoE reboot control from GUI. SMTP/SNMP Trap Event Aler
