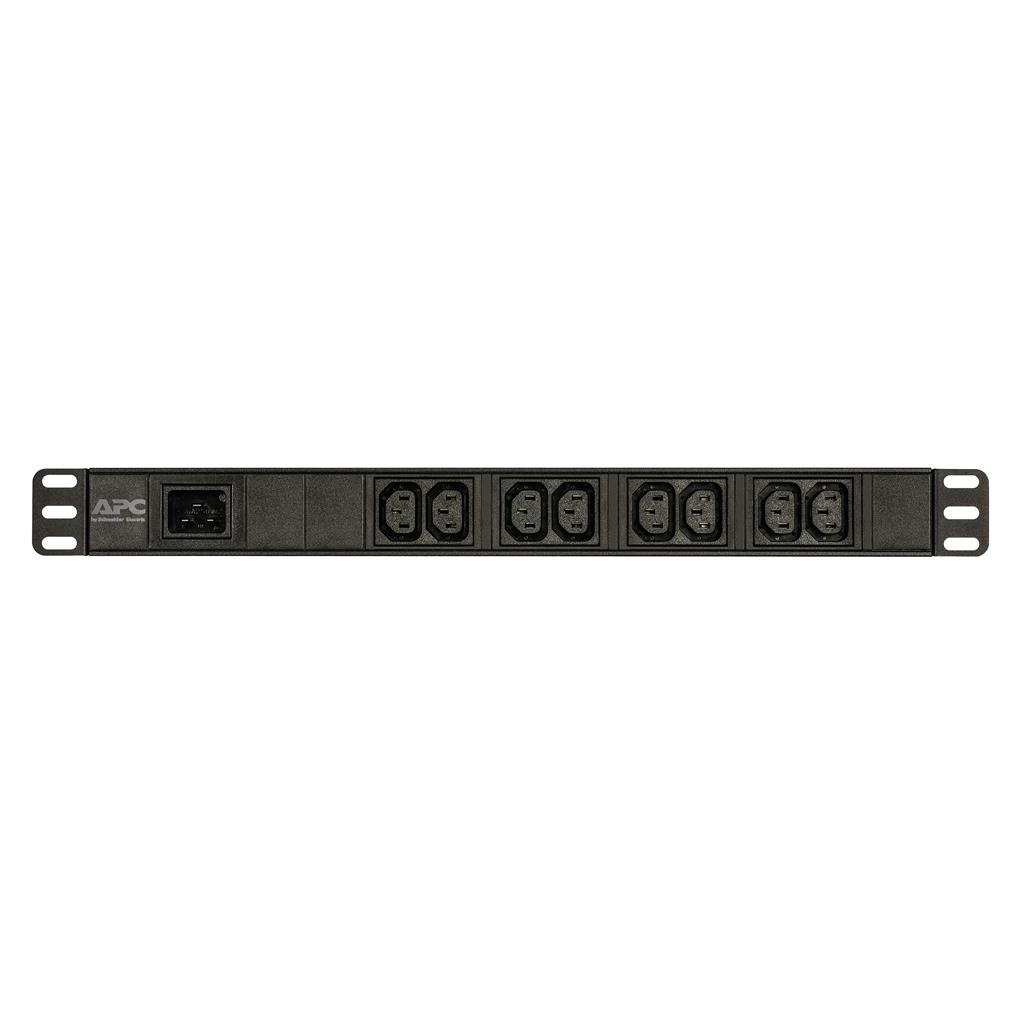

APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

Single-phase Basic 1U Black. 8 AC outlet(s) C13 coupler. 3680 W. APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.. Design. On/off switch. No. Product colour. Black. Housing material. Aluminium. Mounting. Horizontal. Rack capacity. 1U. Type. Single-phase. PDU types. Basic. Ports & interfaces. AC outlet types. C13 coupler. Power plug. C20 coupler. AC outlets quantity. 8 AC outlet(s). Features. Cable length. 2.5 m. Daisy chain. No. Power. Maximum power. 3680 W. Maximum input current per phase. 16 A. Load capacity. 3680 VA. Nominal output voltage. 208/230 V. Maximum current. 16 A. AC input frequency. 50 - 60 Hz. Nominal input voltage. 200/208/230 V. Certificates. Certification. CE, TUV. Compliance certificates. RoHS. Operational conditions. Non-operating altitude. 0 - 15000 m. Operating altitude. 0 - 3000 m. Operating relative humidity (H-H). 5 - 95%. Storage relative humidity (H-H). 5 - 95%. Storage temperature (T-T). -25 - 65 °C. Operating temperature (T-T). -5 - 45 °C. Weight & dimensions. Weight. 580 g. Height. 44 mm. Depth. 44 mm. Width. 482 mm. Packaging content. Manual. Yes. Packaging data. Package height. 150 mm. Package depth. 80 mm. Package width. 560 mm. Package weight. 1.18 kg. manual pdf. leaflet. drawing
